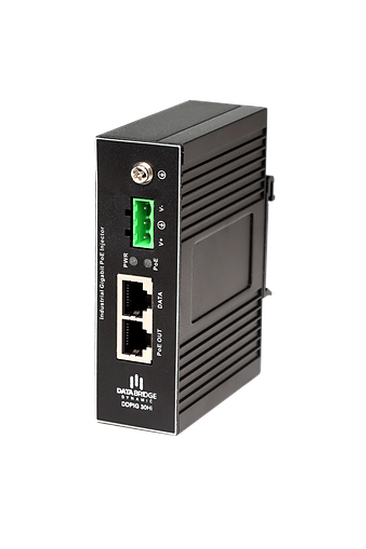

DDPIG XX D Hi
DDPIG SERIES
The DDPIG xx D hi, A single port, industrial grade, mid-span POE injector, offers A compact the DDPIG xx D hi POE mid-spans eliminates the need for external power supply and its. Models covered by this datasheet: DDPIIG 30 D Hi.
Features
- Full IEEE802.3AF, IEEE802.3AT, IEEE802.3AT/bt-4PAIR compliant.
- Up to 30/60W of power on 4-PAIRS.
- Auto-detect of IEEE802.3AF, IEEE802.3AT, IEEE802.3AT/bt-4PAIR pd.
- Supports 10/100/1000BASE-T applications.
- LED indicators power input and POE output indication.
- Distance up to 100 meters.
- DC input 45 to 56V.
- ESD protection level 6KV.
- Dcin port surge protection level 8/20US dm/cm 3KA.
- RJ45 port surge protection level 10/700µS dm/cm 6KV.
- Wide operating temperature: -40⁰C to +75⁰c.
- 40⁰C to 75⁰C.
- 40⁰C to 80⁰C.
- Models covered by this datasheet: DDPIIG 30 D Hi.
