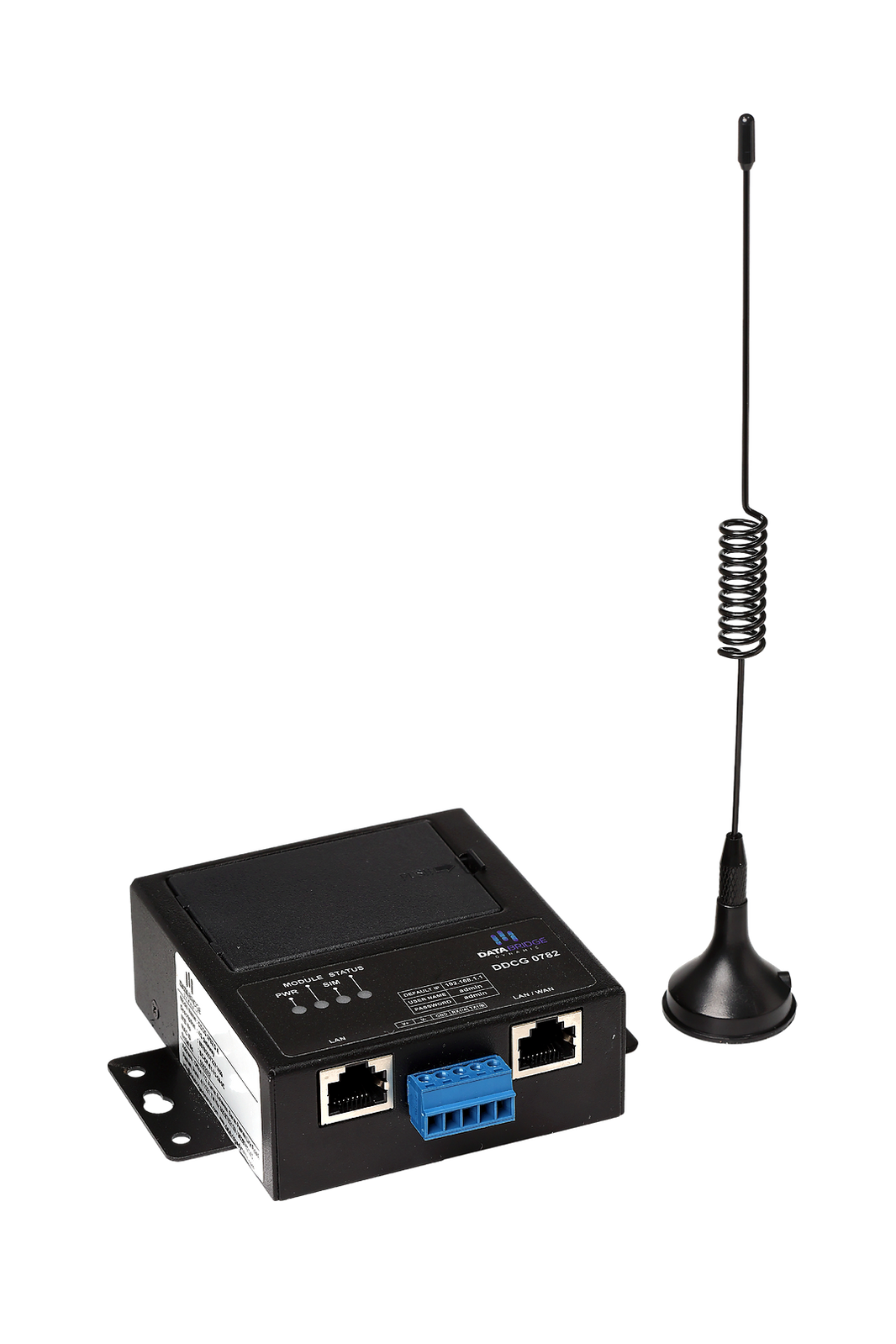

DDCG 0782 D A

Features

• Support standard 1 RS485 serial port default (or 1 RS232 optional), 1 * LAN & 1 * LAN/WAN.
• Large serial port data cache, 10MB, ensure the data is not lost.
• Support hardware and software wdt.
• The intelligent data terminal CAN enter the data transmission state when it is powered on.
• Support auto recovery mechanism including online detect, auto redial when offline to support low-consumption mode, including sleep mode, scheduled online/offline mode,.
• High-performance industrial-grade wireless module is adopted.
• Enter into communication state automatically when powered.
• Provide management software for remote management (optional).
• Convenient configuration and maintenance interface web or cli.
• Ethernet port is 1.5KV magnetic isolation protection.
• Serial ports are 15KV ESD protection.
• SIM/uim port is 15KV ESD protection.
• Power port has reverse polarity and overvoltage protection.
• Standard sma male antenna interface with A characteristic impedance of 50 ohms.
• Antenna port has lightening protection (optional).
• Support TCP server.
